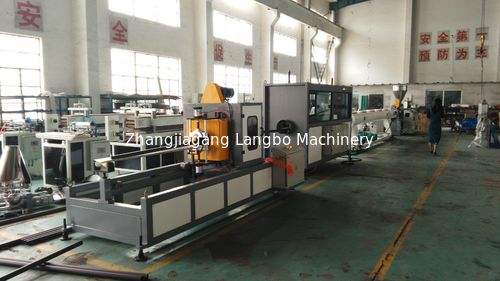

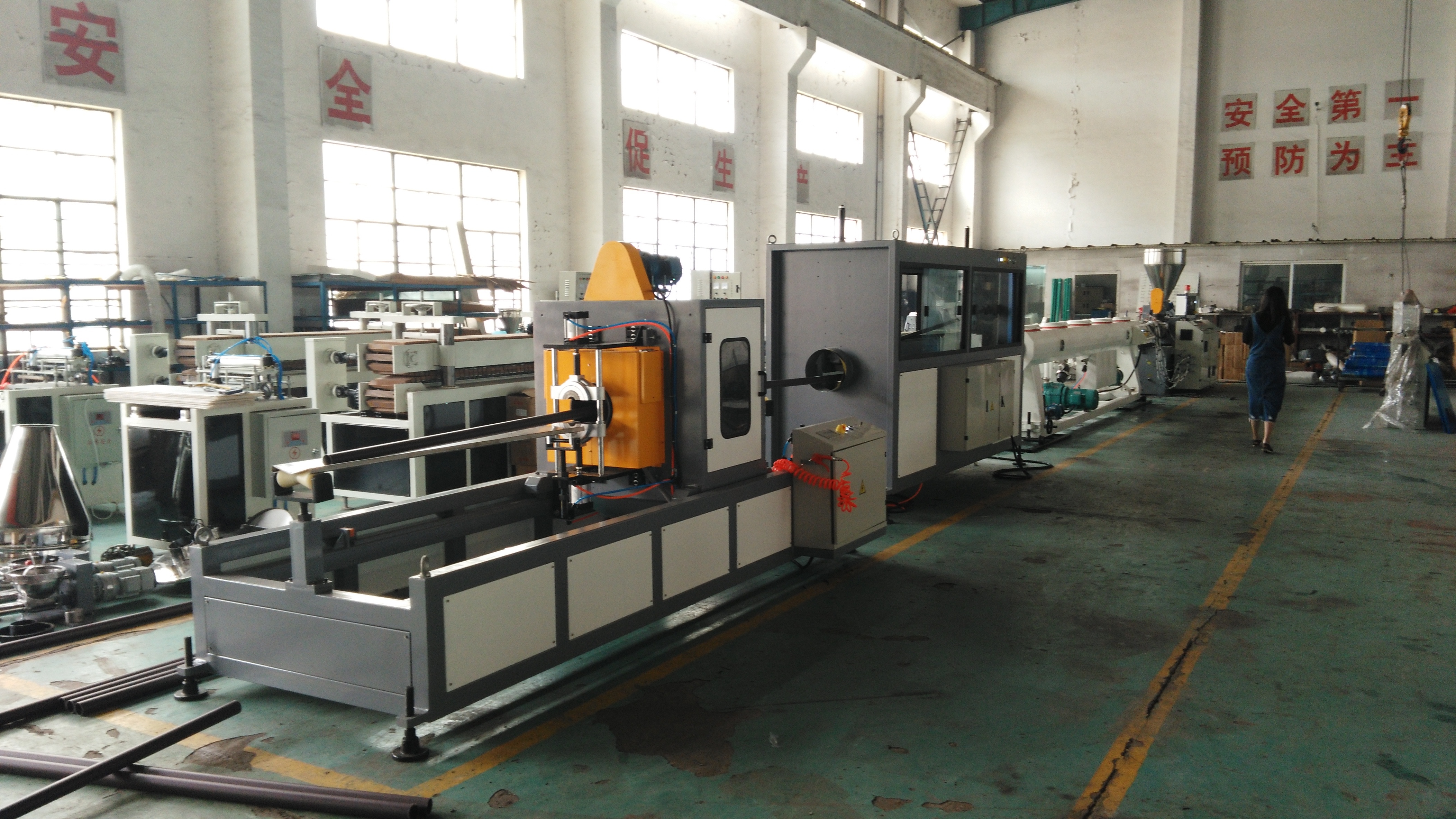

PVC Pipe Extrusion Line DN110–DN250

PVC Pipe Extrusion Line DN110–DN250

Tags: PVC, Pipe Extrusion Line

Application

• Location: Tunisia

• Product: PVC Pipe Extrusion Line with Diameter Range DN50–DN140

Customer Requirements

• Whole process turn-key solution

• Stable production with high output

• High automation with minimal labor requirement

Tailored Solution

1. Mixer Combination
   For the same type of PVC material, the mixing process is essential. During mixing, PVC powder is blended with additives. The heating and cooling mixing cycles are automatically executed. After mixing, the material is stored for a certain period and then conveyed into the extruder. The entire process is fully automated once parameters are set.

2. Parameter Indicator
   Based on our extensive experience in extrusion and operation, the operator can monitor the extrusion process and control the haul-off and cutting machine. Compared with a touch screen HMI (Human Machine Interface), the indicator panel allows most operations while significantly reducing cost.

3. Laser Printer
   Instead of an ink printer, a laser printer is applied, as it is widely recognized for its reliable performance and low maintenance cost.

4. Double Oven Belling Machine
   For the belling machine, we use a dual heating oven design to ensure a rapid belling process. At the belling station, the pipe end is already heated and can be shaped immediately. This guarantees both excellent shaping quality and maximum productivity.

Our Advantages

• Proven Experience: With years of expertise in PVC pipe extrusion, we deliver mature and reliable process solutions.

• Cost Efficiency: Optimized configuration and automation achieve high output with low energy consumption, helping customers reduce both investment and operational costs.

• Modular Design: The entire production line is modular, allowing easy expansion and upgrades to meet different diameter and capacity requirements.

• Comprehensive Support: We provide full service from installation and commissioning to operator training and after-sales support, ensuring fast and smooth production start-up.

• Continuous Innovation: Constant improvements in extrusion molds, screw design, and automation systems ensure stable pipe quality and enhanced production efficiency.
