Waste Plastic 500-2000 Kg/Hour Pet Bottle Crusher Shredder Recycling Machine Line
1 КОМПЛЕКТ
MOQ
USD, EUR
цена
ХарактеристикиГалереяХарактер продукцииОценки и отзывыСпросите цитату
Характеристики
Характеристики
Сырье:PP/PE плавят шишки
Емкость:500 кг/ч
Операция:Полностью автоматический
Общая мощность:110кВт
ЗАДАВЛИВАТЬ ПУТЬ:ВАЛ ШРЕДЕРА ОДИНОЧНЫЙ
СУШИТЬ ВОДУ:центрифуги
Выделить:
500KG/H Capacity Plastic Shredder
,
Full Automatic Single Shaft Shredder
,
110KW Total Power Plastic Recycling Machine
Основная информация
Место происхождения:Чжанджиаганг
Фирменное наименование:LB
Сертификация:CE, ISO
Номер модели:LB-600
Оплата и доставка Условия
Упаковывая детали:Стандартный пакет
Время доставки:60 рабочих дней
Условия оплаты:Л/К, Т/Т
Поставка способности:10 комплектов в месяц
Галерея
Waste Plastic 500-2000 Kg/Hour Pet Bottle Crusher Shredder Recycling Machine Line
Характер продукции

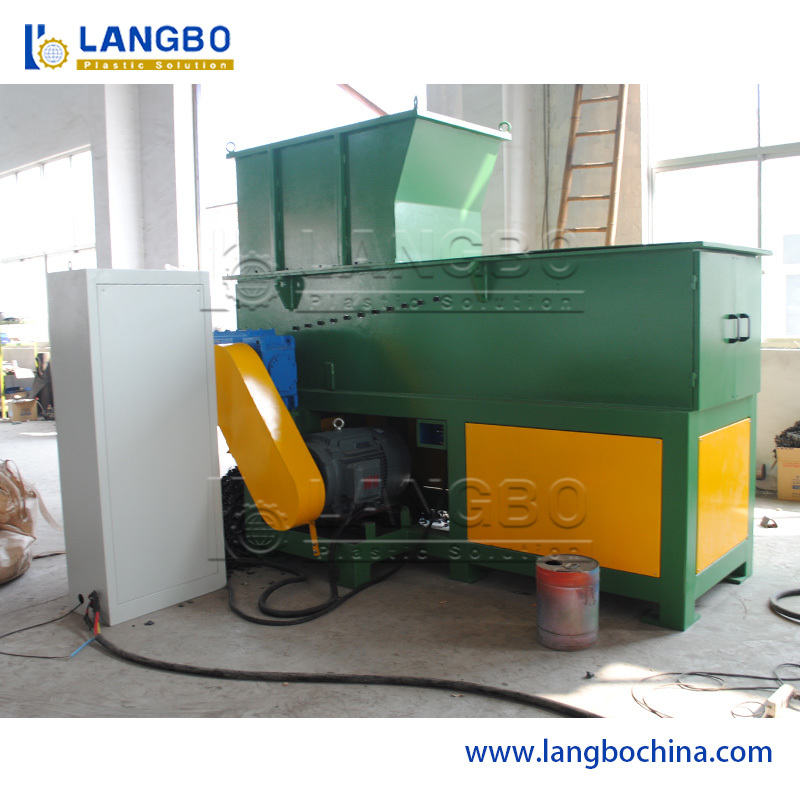

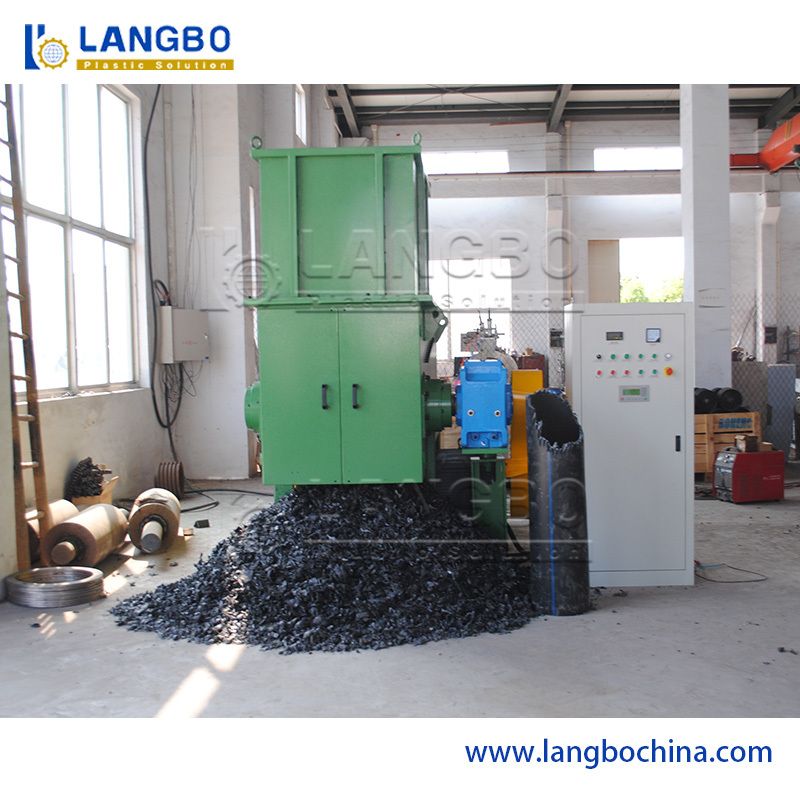

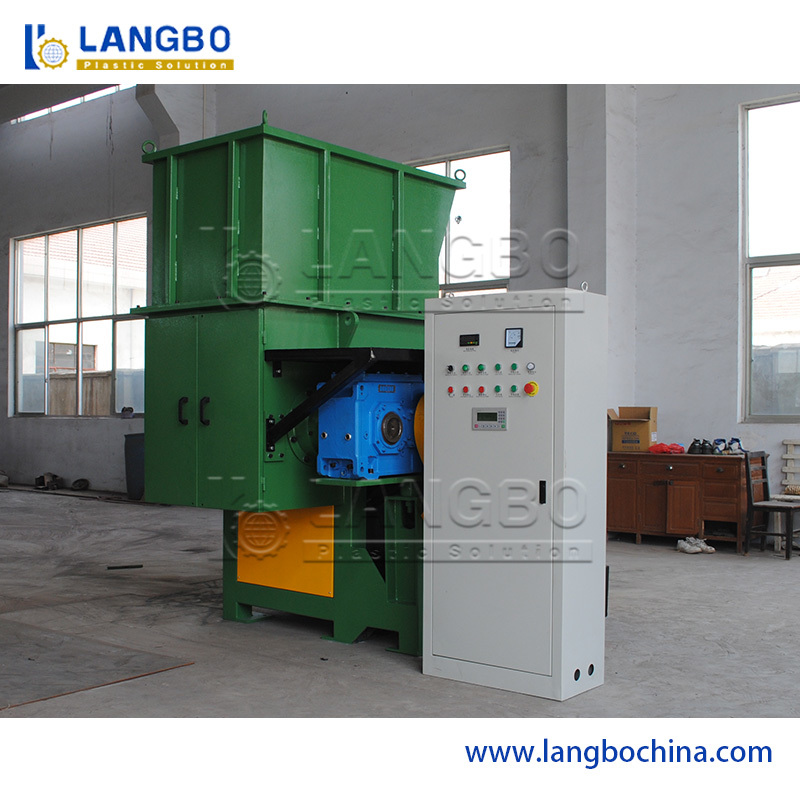

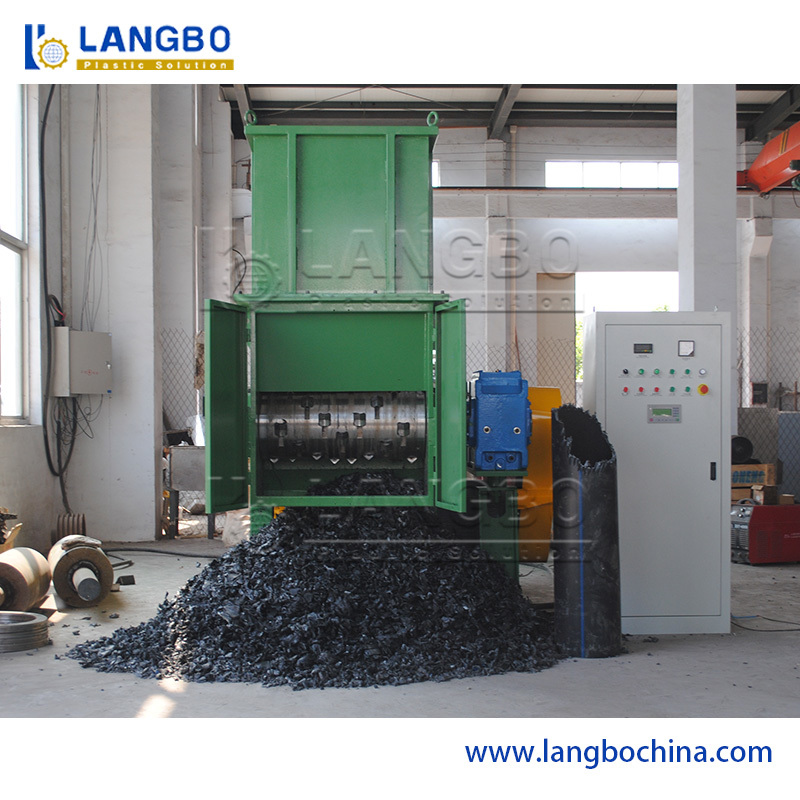

Single Shaft Shredder for Processing Melt Lumps
Before operating the HDPE pipe extrusion line, workers must start the machine and adjust all parameters throughout the process. During this procedure, waste PE melt lumps are generated as large, hard blocks that cannot be processed by standard crushers. Our single shaft shredder, featuring high rotation speed and specialized shaped knives, efficiently processes these materials through the input port, with particles discharged from the outlet.
Two Types of Single Shaft Shredders
We offer two configurations of single shaft shredders: sliding port and upper port models. Both variants share identical motor specifications and internal construction while providing different feeding options.
Our plastic single shaft shredders are engineered for pre-crushing challenging materials including sacks, jumbo bags, tires, cable, and yarn that are difficult to process in standard granulators. Pre-crushing enhances granulator capacity while extending equipment and blade lifespan.

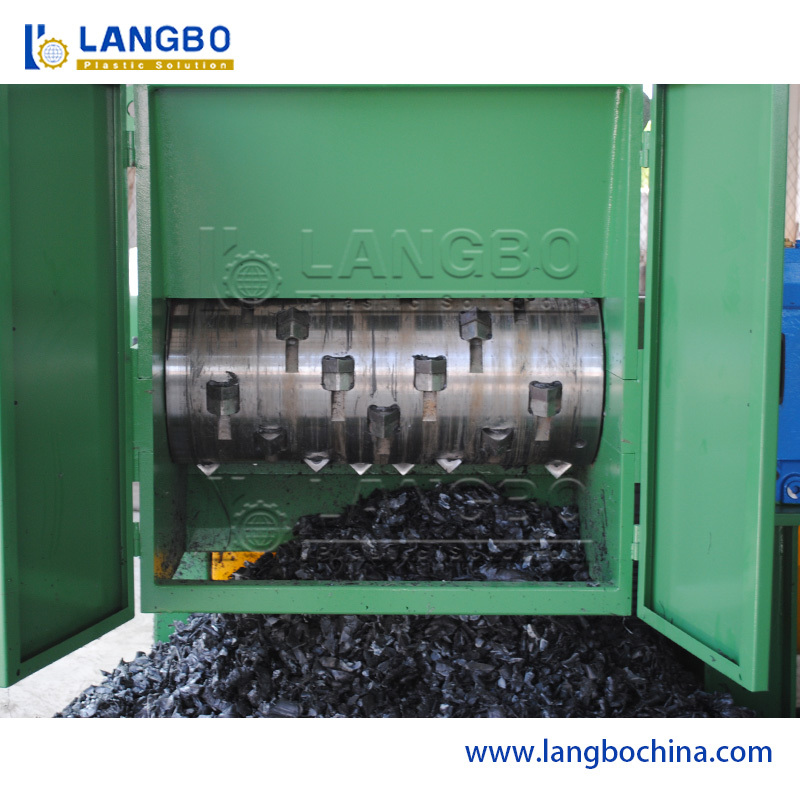

Materials processed through rotating and fixed blades can be further refined to desired sizes using granulators. The system incorporates automatic stop, reverse direction operation, and alarm functions to handle potential material jamming, metal detection, and overload conditions.
Applications
Compatible Materials: PP, HDPE, LDPE, LLDPE, and similar polymers
Material Forms: Woven bags, printed films, agricultural film, raffia, and rigid plastic scraps
Production Capacity
Available capacities: 300kg/hr, 500kg/hr, 1000kg/hr
Note: Specific components within the complete processing line may be modified or customized based on material characteristics and shape requirements.
“The automatic pipe feeding and calibration system works smoothly. Socket dimensions are uniform, and the machine runs continuously without overheating. Ideal for high-volume production.
