HDPE PE Pipe Using Auto Coiler

HDPE PE Pipe Using Auto Coiler

Short description:
(1) Full automatic pipe winding machine, self-designed and developped, can realize automatic winding, automatic roll change & cutting, automatic strapping and automatic unloading. We also apply full automatic packaging solution. meets urgent needs of intelligent production duct to the shortage of human resources, solves the problem that manual roll changes in high speed pipe production line is too late, and labor cost is increasing high. Production efficiency is effectively improved.
(2) Pipe Accumulator equipped to ensure sufficient buffering time while automatic coil changes. It also has function of tesion control, which can automatically adjust the winding speed accroding to the storage pipe length. Winding speed is precisely synchronized with the line production speed.
(3) A series of auxiliary devices such as pipe clamping, automatic cutting and pipe end pressing in this winding machine are essential intelligent fucntions for fully automatic operation of the winder. (4) Auto strapping device can be customized according to the user's requirement. The device can realize automatic 3-5 strapping to the coil. After finishing auto strapping,the auto discharging part will start subsequently. When finish auto discharging, the reel will return to the initial position automatically. No manually intervention during the entir process.
(5) PLC Control system is applied, enter with setting instruction. Available to set the coiling length, strapping quantities, coiling pipe diameter etc parameter etc parmeters through HMI (Human Machine Interface), which guarantee the synchronization and stability of the entire system.

Advantage of plastic pipe winding machine:
1.Fully automatic,save manpower.
2.Suitable for wide range diameter of pipe.
3.Easy to operate,maintain.
4.Lower powder consumption.
5.Much convenient transportation and handling.

Delivery information:
1. Delivery: 30 days after ur order
2. Warrenty: 12 months
3. Payment: T/T 30% in advance, T/T 70% before delivery.
4. Packing: Standard export wooden case

Our Service
1. One year guarantee for whole machine.
2. 24 hours technical support.
3. Our engineers can provide installation & commission service overseas.
4. After a year, we can instruct you how to maintain the machine, and spare parts are provided with the best price.
5. We also can provide training service which help operators handle the machine well.

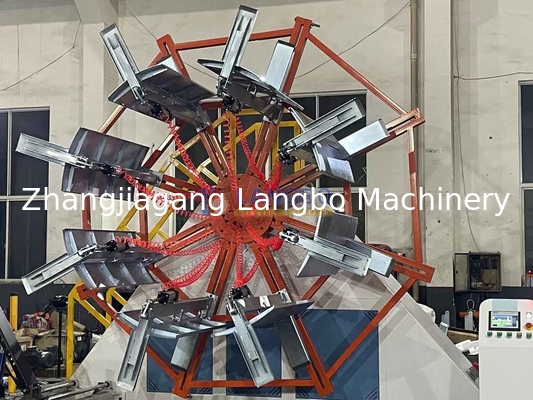

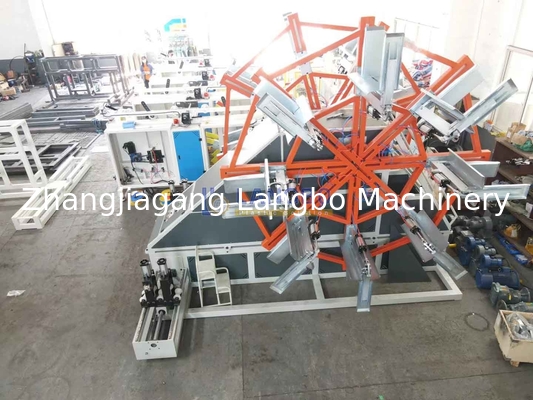

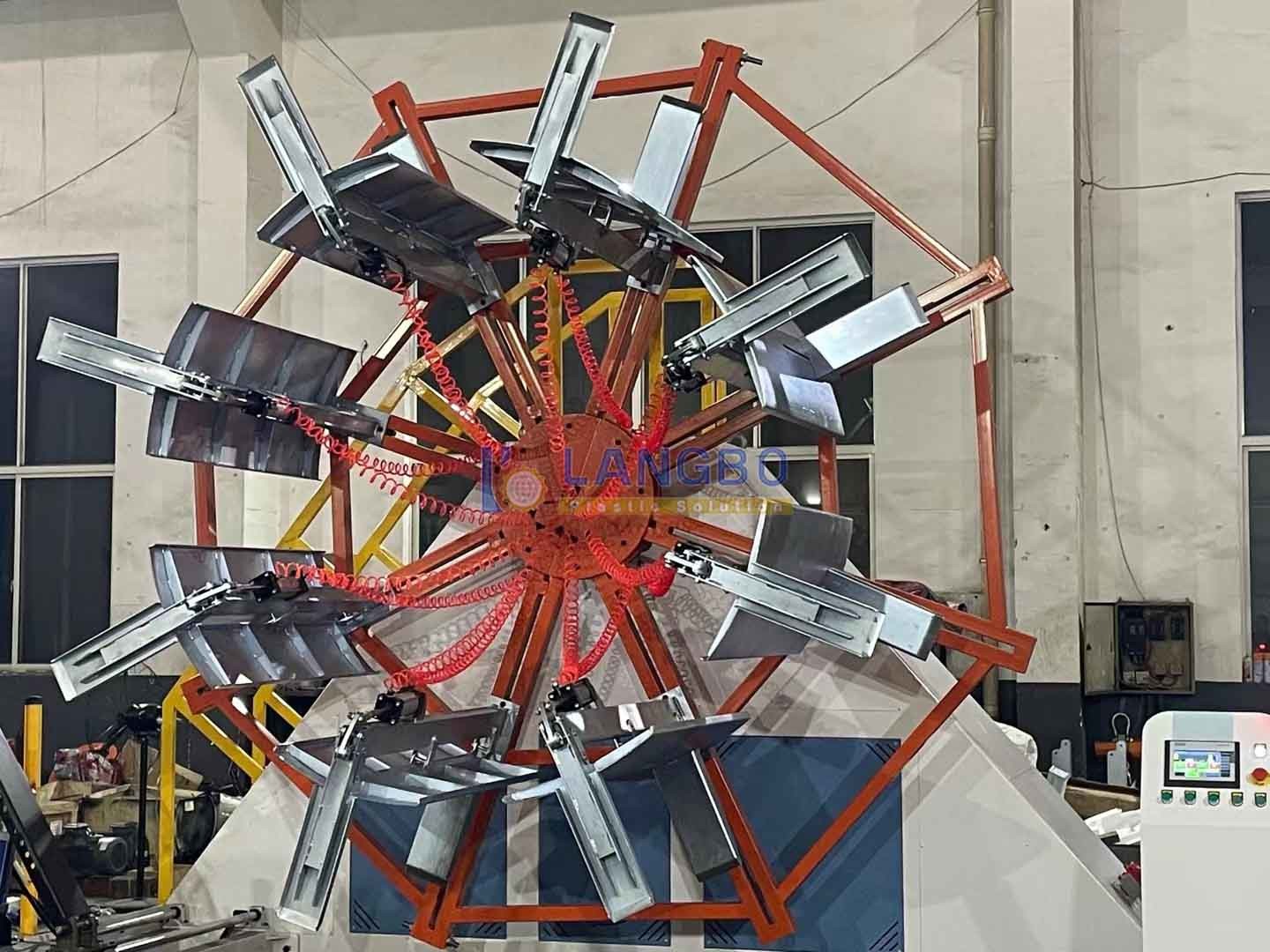

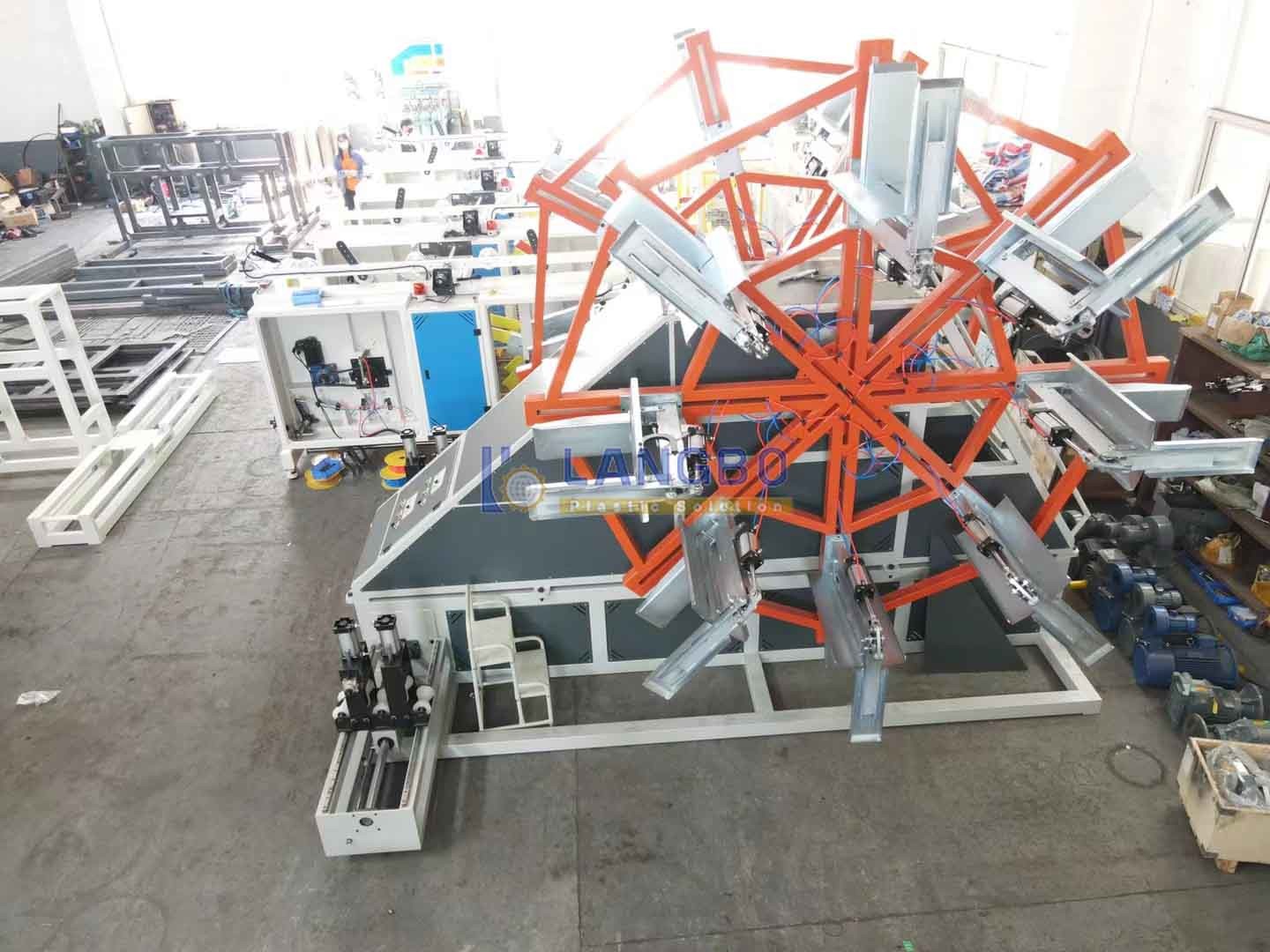

Detailed photos

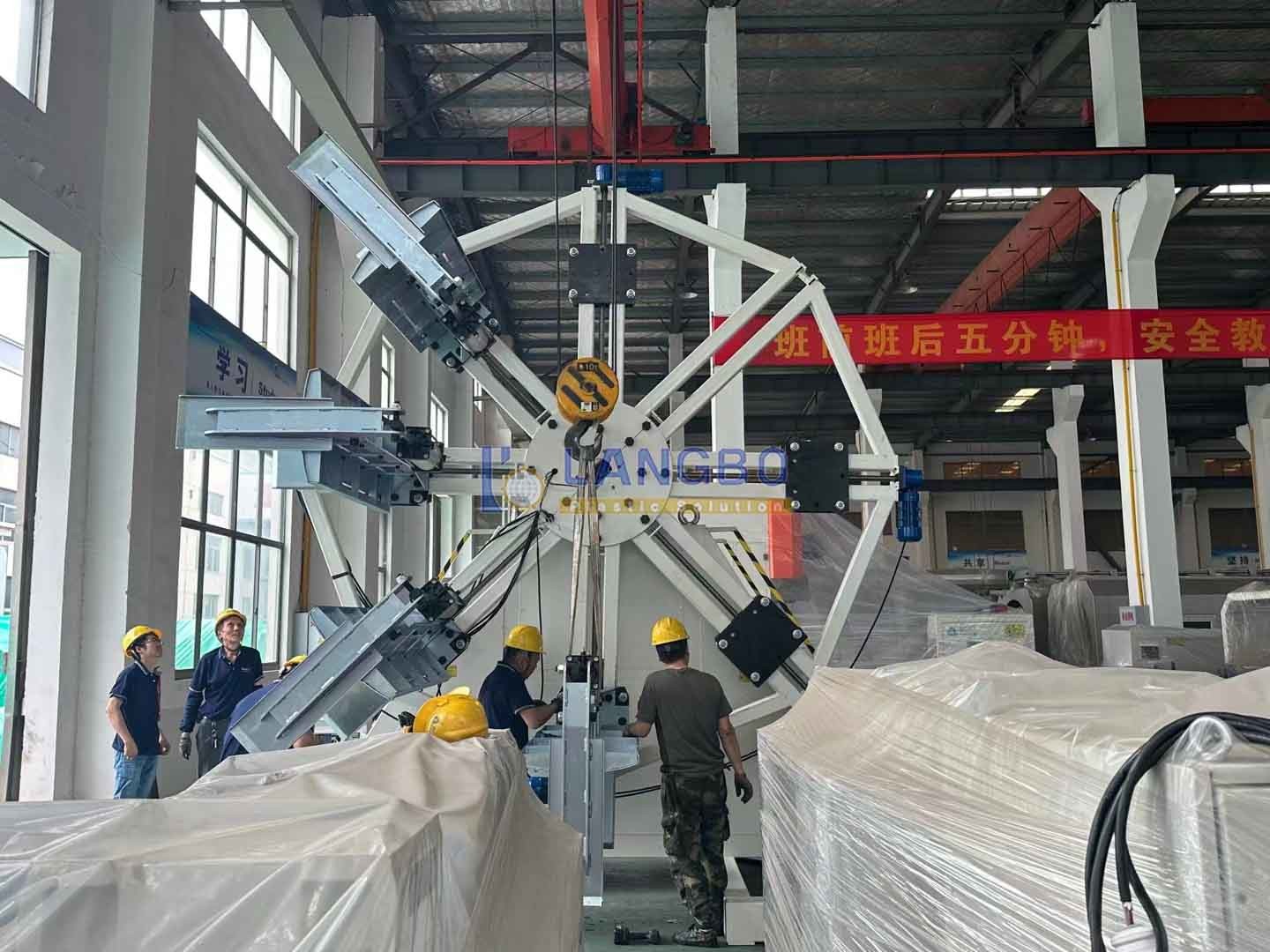

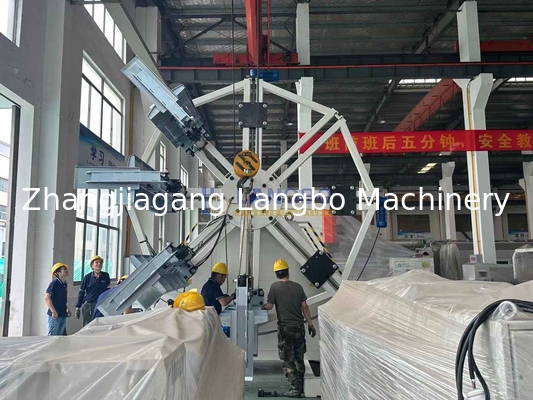

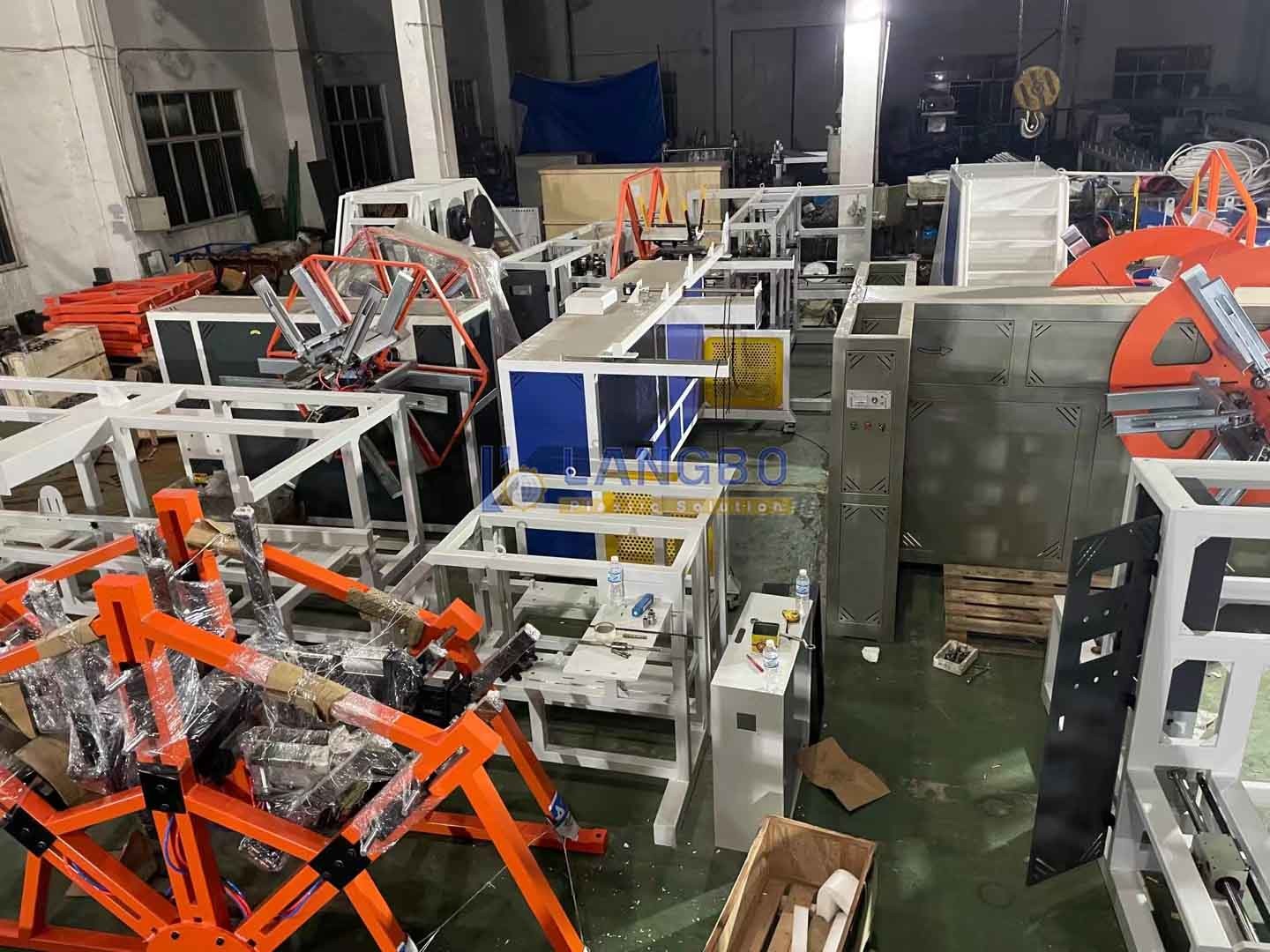

Our factory

Our exhibition

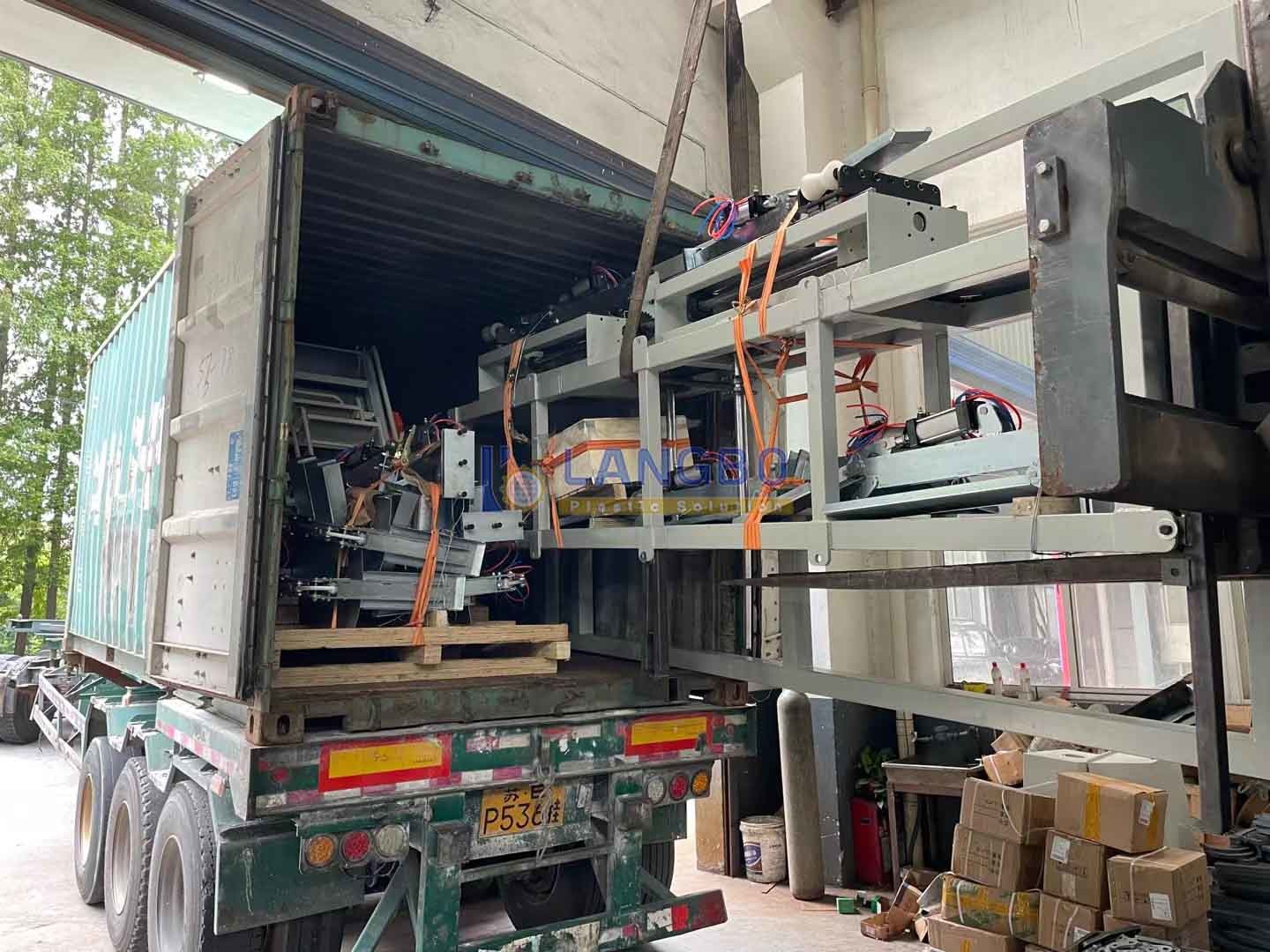

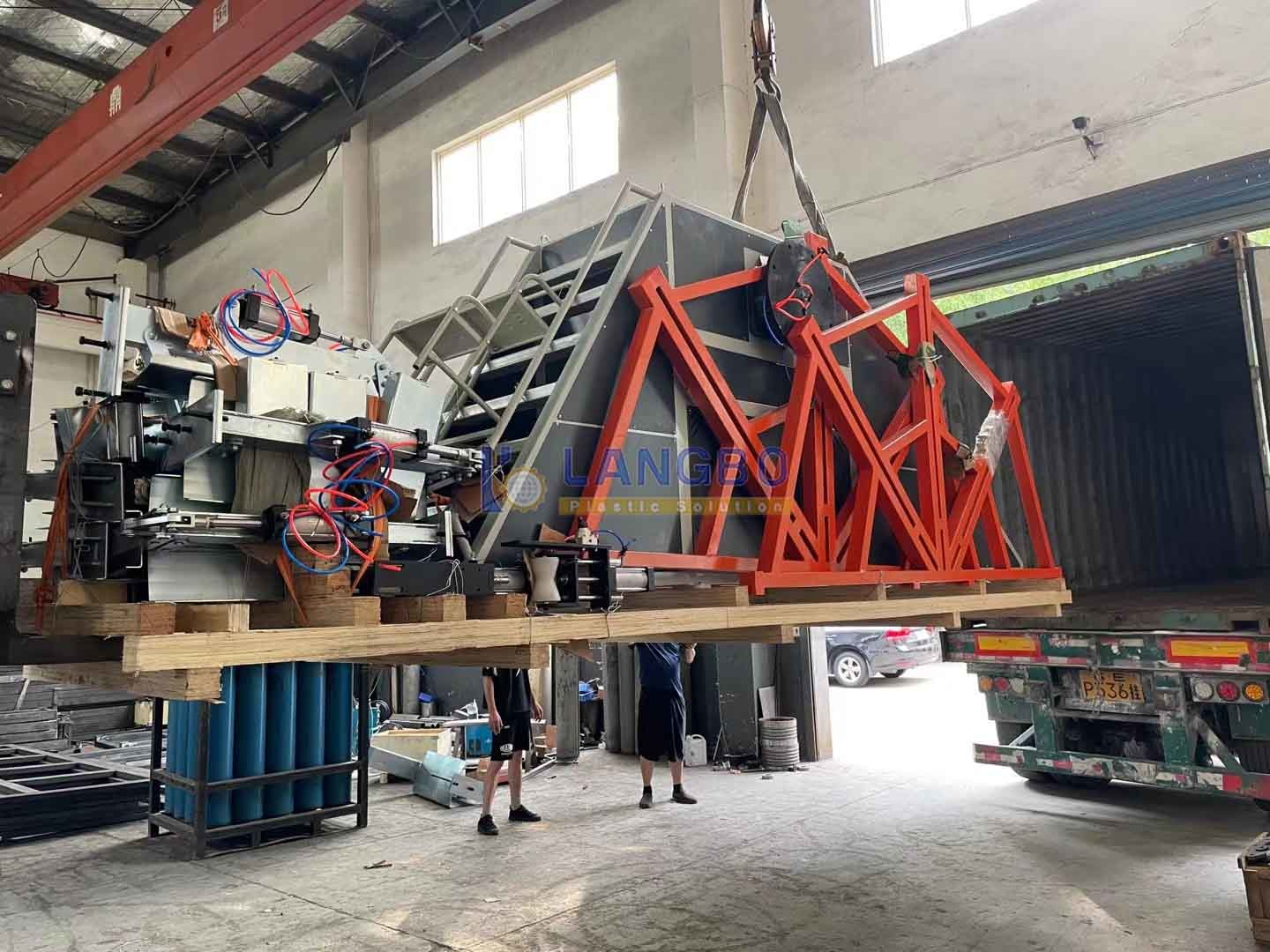

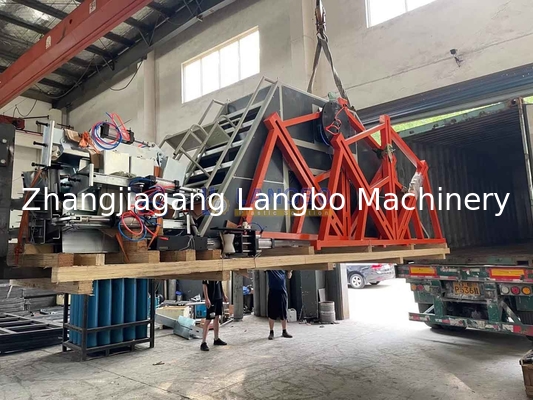

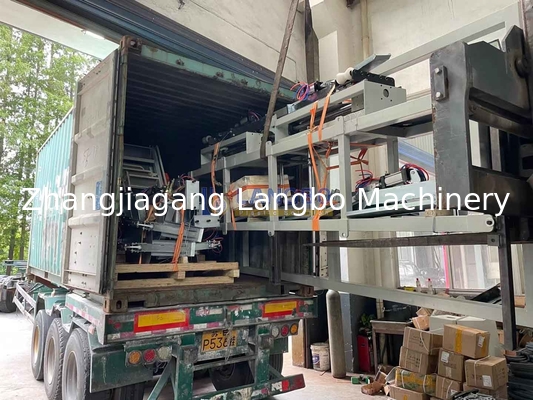

Our goods shipping
